Label Feeder

we offer you various kinds of Label Feeders for smt machines such as juki, yamaha, samsung, ASM Siplace, universal, Assembleon, Topaz, fuji, panasonic, philips, ASM Siplace , sanyo, i-pulse, tenryu, universal, hitachi, mirae and so on.

label feederlabel feeder




Our label feeder can pick and place various kinds of labels, paper, plastic, copper, alumina heat sink(with thickness more than 10mm)



Label Feeder

For product identification, traceability and process flow control, people will mark PCB boards with a label,usually this is done by hand, so the labor costs is very high, also placement accuracy can be questionable. Or you can buy a machine to pick and place these labels automatically, but the cost is very high and it occupy an additional factory floor space.



Now we have deleoped a automatic label feeder, it can solve all these problems. It is just the same as a feeder for your existing pick and placement machines,it can peel and present the label stock, your placement machines can pick and place these labels from this label feeder, this approach is more productive and faster than hand placement. It is no longer necessary to hand place labels or other adhesive backed media. Automate your process while improving placement accuracy, speed and quality.



Label Feeder

We have two Liner (web) Width for this label feeder, 50mm, 85mm, also we can make customized Liner Width as your request, so our label feeder can peel and present more than 2 lables together, so it is more efficient and productive.


Label Feeder Spec:
Web Width: 50mm, 85mm or customized one


Label Spec:
Specification Minimum  Maximum
Media Size 2 mm x 2 mm

31 mm to customized one * 50 mm,

31 mm to customized one * 85mm ,

31 mm to customized one * 100mm

Media Thickness 0.05 1
Liner Width
Web Width
1

50mm

85mm

customized one

Liner Thickness  0.05 1
Feed Rate  0 mm / sec  95 mm / sec or customized speed


Label Feeder Applied to : those Juki SMT machines KE710, KE720, KE730, KE750,KE760,KE2000/2010/2020/2030/2040/2050/2060/2070/2080/3010/3020/1070/1080 FX-1/ FX-2/FX-3 such as Juki, Juki X, Juki XII and so on.
juki label feeder juki label feeder juki label feeder
Label Feeder juki  into machine into machine Label Feeder juki into machine into machine

Yamaha Label Feeder

Applied to : those Yamaha SMT machines using CL, FV feeders such asYG12F, YG100, YG100R, YG88, YG88R, YG200, YG200L, YG300, YV100Xg, YV100XgP,
YV100XgC, YV88Xg, YV100XTg, YV180Xg, YV100X, YV88X, YV100XT, YV180X, YV100Xe, YV100-II, YVL88-II, YV112-III and so on.

label feeder Yamaha label feeder Yamaha label feeder
Yamaha label feeder Yamaha label feeder Yamaha label feeder

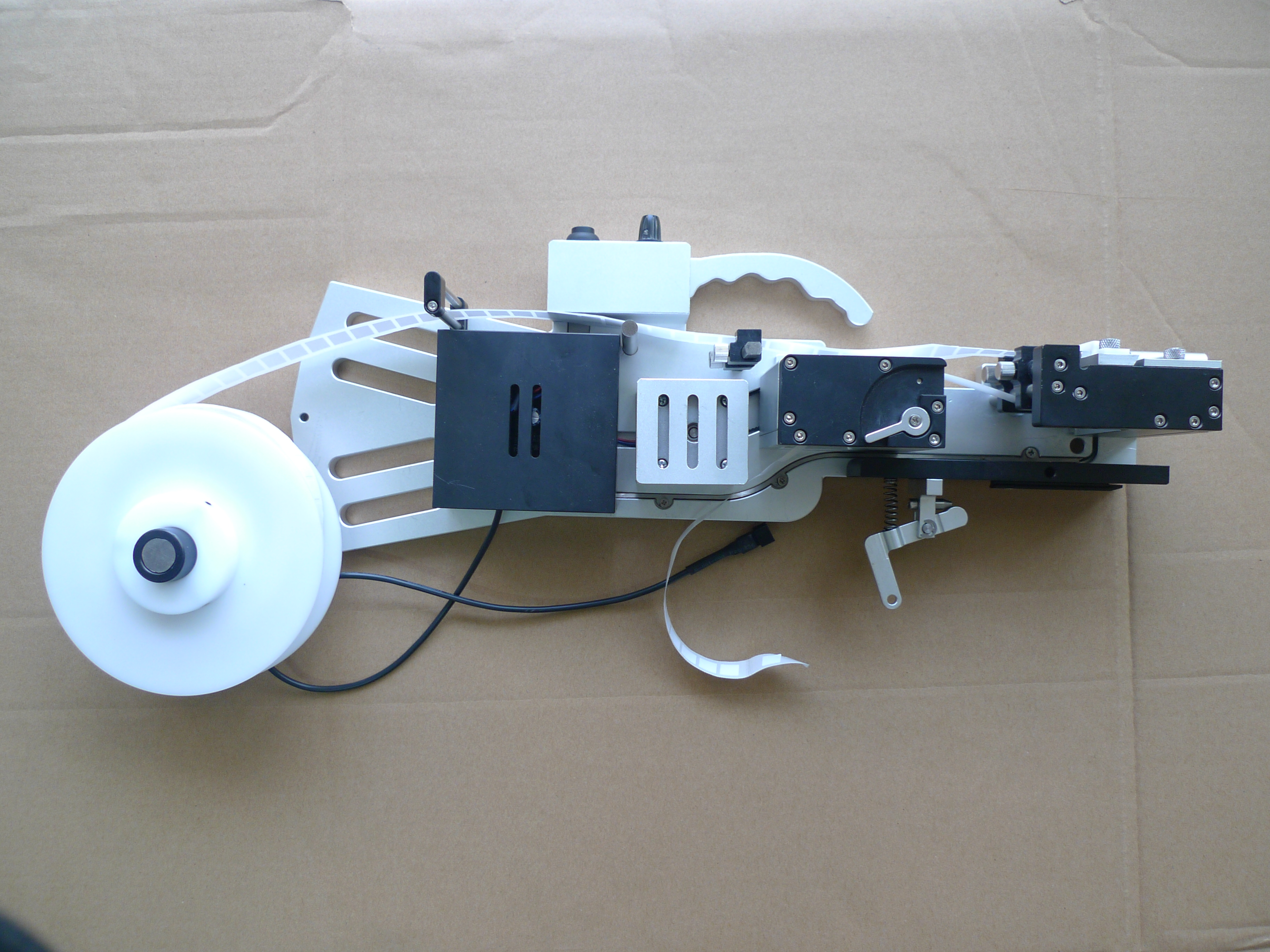

Applied to : those Yamaha SMT machines using motorized feeders such as YSM20 (Z:LEX), YSM40 (Z:TA), YS12, YS12F, YS12P, YS24, YS24X, YS88, YS100 and so on.
label feeder YS label feeder YS label feeder YS
label feeder YS label feeder YS label feeder YS


Assembleon Label Feeder

For Assembleon SMT pick and place machines such as Topaz, Topaz X, Topaz XII, Sapphire-Xii, MG1,MG2, MC-12, EMERALD,EMERALD X, EMERALD X II,SAPPHIRE , COMET, Opal
label feeder Asembleon label feeder Asembleon label feeder
label feeder Asembleon Asembleon label feeder Asembleon label feeder
Applied to : those Assembleon SMT machines using motorized feeders such as MC-1,MC-5,MC-8,MC-12 MC-Series and so on.
label feeder MC label feeder MC label feeder MC
label feeder MC label feeder MC label feeder MC


Samsung Label Feeder

Applied to : CP60, CP50, CP45,CP40,SM451, SM421, SM411, SM320, CP45Neo and so on.
samsung label feeder samsung label feeder samsung label feeder
samsung label feeder samsung label feeder
Applied to : CP45,CP40,CP20 and so on.
samsung label feeder samsung label feeder samsung label feeder
samsung label feeder samsung label feeder


Universal Label Feeder

Applied to : those Universal SMT machines such as GSM2,GSM1,GI14D,Genesis GI-14D GI14 ,GX11D,Genesis GX-11D GX11D ,GX11S,Genesis GX-11S GX11S GX37D,Genesis GX-37Dgx37d ,GC30S,Genesis GC-30S,gc30s ,GC60D,Genesis gc-60d GC60 4991D/GC120Q 4991D ,GSM1 ,4796 ,4797 and so on.

Universal Label Feeder Universal Label Feeder Universal Label Feeder


i-Pulse Label Feeder

For i-Pulse SMT pick and palce machines suc as M10,M20 and so on
i-Pulse Label Feeder i-Pulse Label Feeder
Applied to : those i-Pulse SMT machines M1 & M4 M6ex, M7, M8 so on.
i-Pulse Label Feeder i-Pulse Label Feeder i-Pulse Label Feeder



Label Feeder Fuji

Applied to : those Fuji SMT machines such as XP141,XP142, XP143, CP8,IP, IP2,IP3,QP132, QP242,QP341 and so on.

Label Feeder Fuji Label Feeder Fuji Label Feeder Fuji


Panasonic Label Feeder

Applied to : those Panasonic SMT machines such as KME, CM202,CM402,CM602,NPM,and so on.

Panasonic Label Feeder Panasonic Label Feeder Panasonic Label Feeder


ASM Siplace Label Feeder

For D1,D2,D3,D4,D4i, HF,HS60,HF3 D series and H series

ASM Siplace Label Feeder ASM Siplace Label Feeder ASM Siplace Label Feeder

Hitachi Label Feeder

For D1,D2,D3,D4,D4i, HF,HS60,HF3 D series and H series

ASM Siplace Label Feeder ASM Siplace Label Feeder ASM Siplace Label Feeder
