HITACHI SMT NOZZLE

HITACHI SMT NOZZLE



hitachi smr nozzle

Hitachi GXH-1, GXH-3 Nozzles


Part Number Description
630 128 4842 (#101) HA01 0.7x0.4/ø0.25 (for 0603)

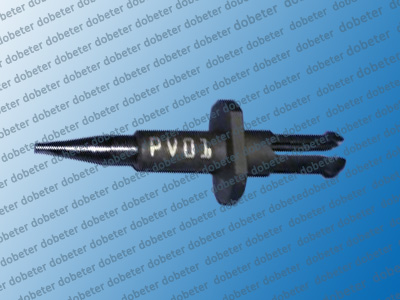

630 132 2322 (#111) PV01 1.1x0.6/ø0.38 (for 1005)
630 132 9857 (#112) PV02 1.7x0.9/ø0.65 (for 1608)
630 129 2892 (#104) HV03 ø1.3/ø0.9 (for 2012)
630 129 2922 HA04 ø1.8/ø1.2 (for 3216)
630 129 2939 (#108) HA05 ø3.0/ø2.0
630 129 2946 HA09 ø6.0/ø4.5

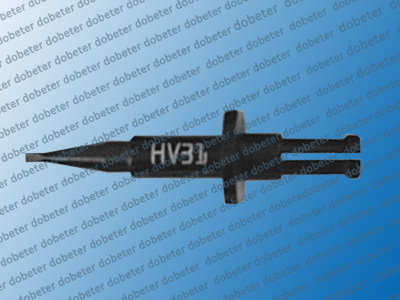

630 152 8267 HV31 ø0.7x0.4/ø0.2

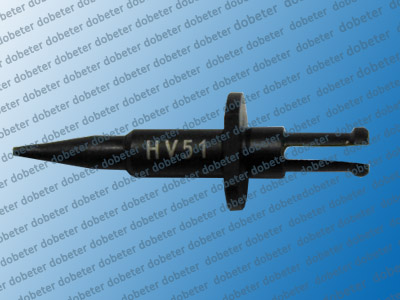

630 152 8472 HV51 ø0.6/ø0.4

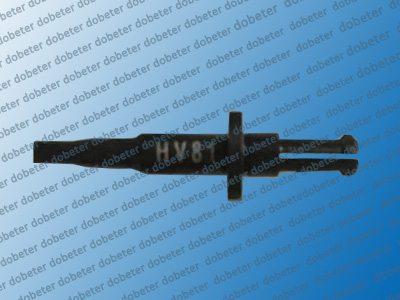

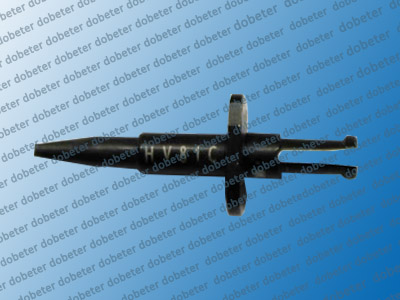

630 158 9084 HV81 ø1.7x0.9/ø0.7
630 158 6571 HG31 ø0.7x0.4/ø0.2
630 159 9632 HG51 ø0.6/ø0.4

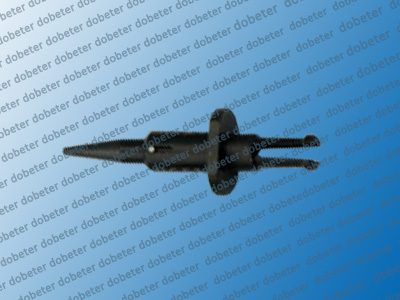

630 161 3501 HG81 ø1.7x0.9/ø0.7

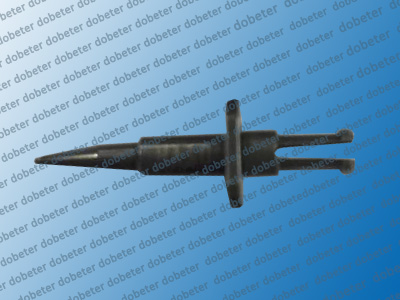

630 128 4842 HA10 ø0.7x0.4/ø0.2

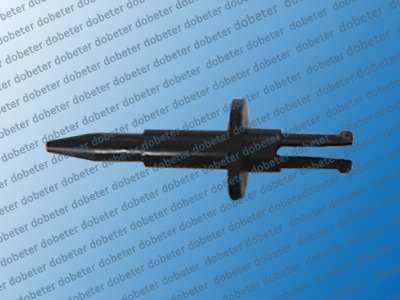

630 129 2878 HV01 ø0.6/ø0.4

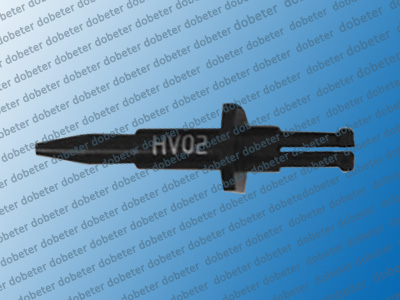

630 129 2885 HV02 ø0.9/ø0.7

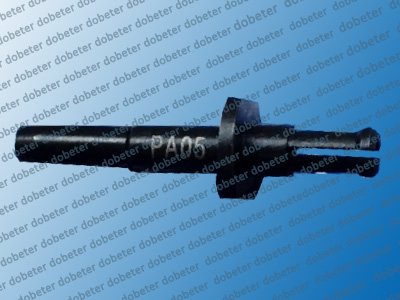

630 133 5407 PA05 ø2.6/ø2.0
630 129 2908 HB03 Melf ø1.3/ø0.9
630 129 2915 HB04 Melf ø1.8/ø1.1

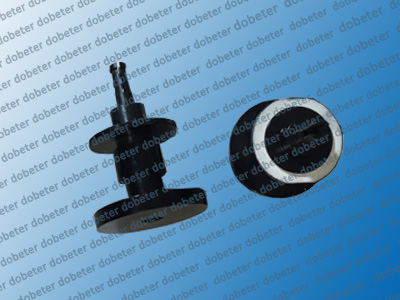

630 129 8214 VF01 ø8.0/ø3.0
630 129 8252 VF02 ø12.0/ø8.0

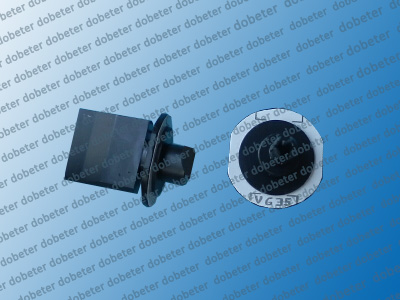

630 130 0283 VG35 8.0x2.2
630 130 0238 VG51
630 130 7831 VG52 7.0x1.4
630 130 0245 VT32 ø12.0x1.9
630 130 8692 VT69 ø8.6 (O-ring)
  FA04 ø1.8/ø1.1
630 132 9260 FA05 ø3.0/ø2.0 Pad
630 132 9277 FA06 ø5.0/ø3.0 Pad
  FF01 ø8.0/ø3.0
  FF02 ø12.0/ø8.0
630 133 3823 WT32 ø12.0x1.9
630 130 0238 WT51 ø18.0x4.0
630 135 2060 WG51 9.0x7.0/1.4x0.6
630 133 3847 WG52 7.0x5.0/1.4x0.6
  VC76 12.0x11.0/1.0x0.5


Hitachi Sigma-G4, Sigma-G5 Nozzles (Σ-G4, Σ-G5 Nozzles)


Part Number Description
HV32C HV32C
HV52C HV52C
HV82C HV82C
HV21C HV21C
HG32C HG32C
HG52C HG52C
HG82C HG82C
HV13C HV13C
HV14C HV14C
HV15C HV15C
HB03C HB03C
HB04C HB04C
