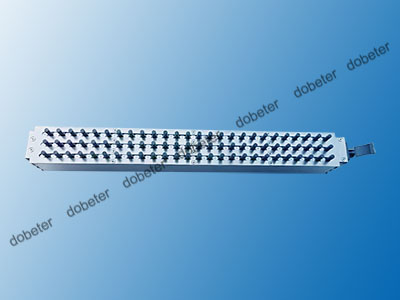

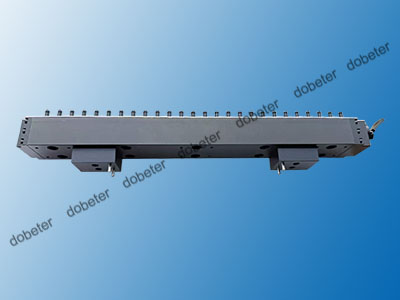

gridlock pcb support

Dobeter's gridlock pcb support is used to support PCB automatically, its pins can automatically adapt to the PCB surface and then lock in place, you don't need to supply air for our gridlock pcb support, just press the handle then all the pins will be locked. It can help to prevent board movement and flex during the screen printing. This gridlock pcb support is repeatable, when you finished using for support for one kind of PCB, you can unlock all pins and put another PCB on it and lock all pins, also , our gridlock pcb support is very secure and adjustable to support PCB. All pins are covered with ESD caps to avoid damage of the components.

Description : gridlock pcb support

Delivery lead time :　in stock

Payment : TT , PayPal, CreditCard, Western Union

MOQ : 1PCS

Model : DBE-GL-PCB-S
Brief introduction to the gridlock pcb support DBE-GL-PCB-S

Product advantageous:

1. Airless, you don't need to supply air for our gridlock pcb support, just press the handle.
1. Easy operation: directly put the gridlock pcb support into two guide rails. PCB need no precise alignment.
2. Increase efficiency: saving more time when changing lines than using original hard pins.
3. Good generality: applying to any PCB and any brand of screen printers.
4. Safe and reliable: avoiding damages to component and microcircuitry caused by inaccurate alignment.
5. Durability: adopting precision mechanical principle. Guaranteeing 2 to 3 years’s srvice life under normal operation.

Technical parameters:
1. We have two kinds of standard ones :
A : length 200mm × width 42mm
B : length 300mm × width 56mm
We can customize different sizes according to customer’s different needs
2. Anti-static parameters: below 1000MΩ.

Applied to :
1. All screen printers in the market, eg. DEK、MPM、PANA、EKRA、YAMAHA、HITACHI、GKG、DESEN
2. All kinds of chip mounters, eg. PANASONIC、FUJI、SIEMENS、JUKI、YAMAHA、SAMSUNG、PHILIPS、SONY、SANYO


Operating instructions:

1. First, put the gridlock pcb support DBE-GL-PCB-S on the platform of screen printers, decide the quantity of gridlock pcb support according to the size of PCB.

2. The pins will go down automatically under the pressure of the components of PCB, press the handle to lock all these pins. So the pin will form a shape similar to meet components on the PCB .

3. We can see the pins in differnt height after we've removed PCB.

4. If you're using the same PCB, then please don't realse those pins, you can put the PCB on the gridlock pcb support directly.

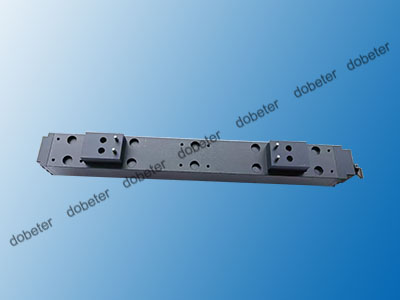

5. The bottom of the gridlock is magnetic, just put it on the plate of the DEK machine, no need to install it.

6. How to use our gridlock pcb support.

PCB Support Pin Blocks Matrix

Model: : DBE-PCB-S-R

Dimensions: 125*40*20mm（L*W*H）, it can be cut into any size as you want.

For pick and place machines, we have another kind of PCB Support Pin Block (Matrix), it have the similar funtion, but it's more competitive.
