Name: PCB Support Pin Blocks Matrix
Brand: Dobeter

We all know that it’s a trouble to set up a double sides PCB board with high density of components if you use pins, pillars , posts..., now you can solve this problem with ease with our PCB Support Pin Blocks/Matrix.Our PCB Support Pin Blocks/Matrix is very soft, so all components on your PCB board will not be damaged, also our PCB Support Pin Blocks/Matrix is anti-static, it avoids static damages your components. Our PCB Support Pin Blocks/Matrix is very durable, also you can use it with ease.

PCB Support Pin Blocks-Matrix.

Description : pcb support pin blocks matrix

Delivery lead time :　in stock

Payment : TT , PayPal, CreditCard, Western Union

MOQ : 1PCS

pcb support pin blocks matrix

Characteristics：
※ Just put the PCB board on the PCB Support Pin Blocks/Matrix , you needn’t do any other things, it really save your time.
※ Our PCB Support Pin Blocks/Matrix is very soft, so all components on your PCB board will not be damaged.
※ Our PCB Support Pin Blocks/Matrix is anti-static, it avoids static damages your components.
※ Durable—Our PCB Support Pin Blocks/Matrix can be repeatedly used more than 6000hours with the temperature lower than 100℃
※Our PCB Support Pin Blocks has a magnetic bottom, what you need is justput it on the platform, or for some special machine, it can be fixes with screws or bolts. Now we can offer you PCB Support Pin Blocks for most common machines such as Philips, Fuji, Panasonic, Siemen, Universal, Juki and so on.

Dimensions: 125*42*20mm(L*W*H), this is only for the rubber part, see below picture. it can be cut into any size as you request.

The total height with body for different machine are quite different, we also can make custom total height as your request. Below is a list of the height for those commonly used machines :

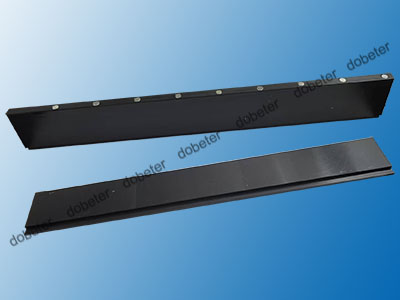

Below is Magnetic Fixed Bar Suppor, with maganetic base , also is used to support PCBs
