ASM Squeegees

ASM Squeegees are essential consumables used in solder paste printing within Surface Mount Technology (SMT) assembly lines, particularly for machines made by ASM Assembly Systems (formerly DEK, Siemens, etc.). These squeegees play a crucial role in accurately depositing solder paste onto PCB pads through a stencil.Types of ASM Squeegees ：there're 3 kinds of ASM Squeegees : 1. Metal Squeegees (Stainless Steel), Material : High-grade stainless steel, Width : Typically 100–600 mm, Use : Standard for most fine-pitch and high-volume applications, Features : Long lifespan, Consistent print quality, Easy to clean. 2. Polyurethane (PU) Squeegees , Material : Urethane blade with aluminum holder, Use : For less demanding applications or when more flexibility is required, Benefits : Softer than metal, suitable for delicate substrates, Economical 3.Plastic/Composite Squeegees , Often used for specialized applications or where metal blades may cause damage. Would you like help identifying the right ASM squeegee for a specific printer model or application? Feel free to share the machine type or part number you're using.

Description : ASM Squeegees

Delivery lead time :　in stock

Payment : TT , PayPal, CreditCard, Western Union

MOQ : 1PCS

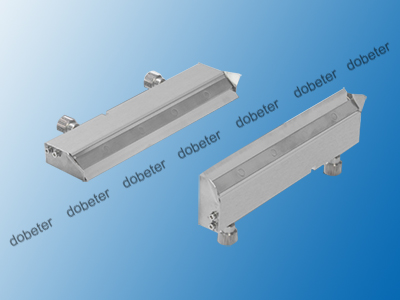

DEK Metal squeegees

DEK Laser cut replacement squeegees blades

The new generation of laser cut squeegee replacement blades ensuring an improved paste transfer with little to no paste smearing. Reduces both defect count and operator intervention.Produced with an optimised laser setup to ensure the highest quality; reliability, repeatability and accuracy.

DEK Metal squeegees for lead free applictions

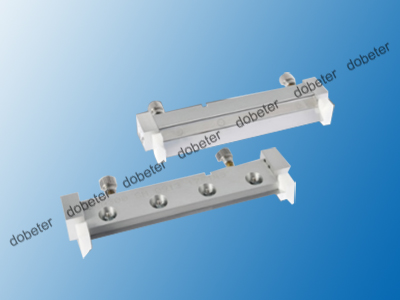

DEK Self Adjusting Paste Deflectors (SAPDs)

SAPDs enable the customer to change the print pressure without needing to adjust the height of the paste deflectors reducing risk of stencil damage and reducing cost through lessening material waste.

SAPDs are ideal for solder paste printing on SMT boards with pressure forces between 0 and 20 kg to improve the level of process control and reduce solder paste waste. The profile and structure of the deflectors ensure that the paste does not escape outward during the printing process. This cuts down on wasted
paste (faster ROI) and drastically reduces printing problems resulting from dried paste on the edges. The bottom line: more performance from the first print to the last.
There is no set up required per product, so risk of stencil coining due to product changeover is eliminated. The deflectors can be removed from the assembly without the need of tools with the simple ‘clip-in’ design, therefore increasing cleanliness of the squeegee/ deflector interface.

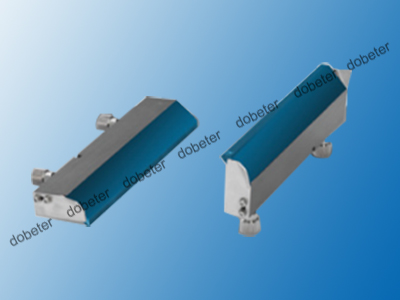

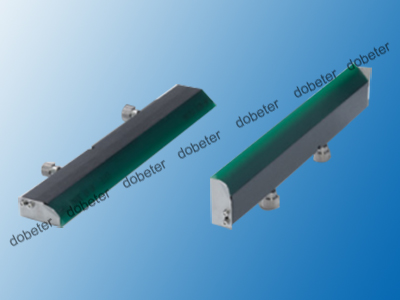

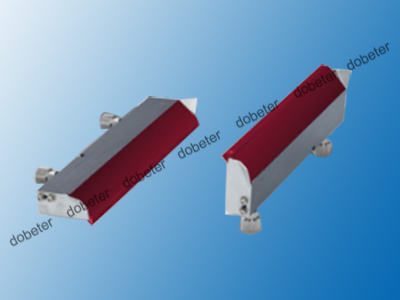

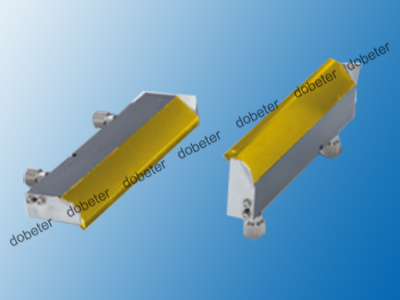

DEK Polyurethane squeegees

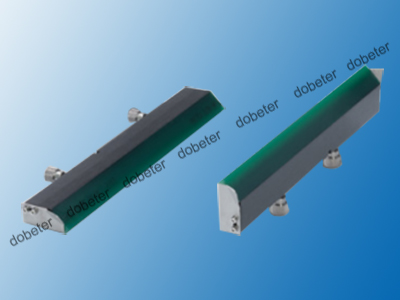

DEK PumpPrint™ squeegees

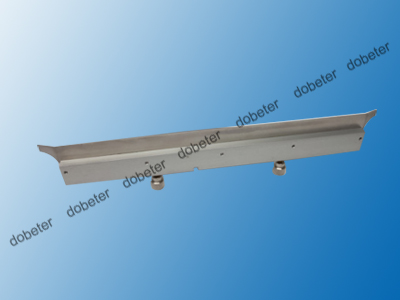

NEW: DEK Special squeegees

Inquire about this ASM Squeegees :

All fields marked with "*" are required.

First Name : *

Last Name :

Telephone :

Mobile phone :

Email : *

Company : *

Order quantity :

Other requirements:

Verification Code:

METAL CLAMPED SQUEEGEES 60° ~ 6 MM OVERHANG
Part number
SAP	DEK	Size	Unit
03130417	SQA310	170 mm	Pair
03130418	SQA311	200 mm	Pair
03130419	SQA312	250 mm	Pair
03130420	SQA313	300 mm	Pair
03130421	SQA314	350 mm	Pair
03130422	SQA315	400 mm	Pair
03141733	SQA316	440 mm	Pair
03130423	SQA317	483 mm	Pair
03130424	SQA318	510 mm	Pair
03130425	SQA319	535 mm	Pair

METAL CLAMPED SQUEEGEES 60° ~ 15 MM OVERHANG
Part number
SAP	DEK	Size	Unit
03130412	SQA300	170 mm	Pair
03130413	SQA301	200 mm	Pair
03128793	SQA302	250 mm	Pair
03128626	SQA303	300 mm	Pair
03128609	SQA304	350 mm	Pair
03128658	SQA305	400 mm	Pair
03128797	SQA306	440 mm	Pair
03130414	SQA307	483 mm	Pair
03130415	SQA308	510 mm	Pair
03130416	SQA309	535 mm	Pair

45° METAL CLAMPED SQUEEGEES
Part number
SAP	DEK	Size	Unit
03130430	SQA350	170 mm	Pair
03130431	SQA351	200 mm	Pair
03130432	SQA352	250 mm	Pair
03130433	SQA353	300 mm	Pair
03130434	SQA354	350 mm	Pair
03130435	SQA355	400 mm	Pair
03130436	SQA356	440 mm	Pair
03130504	SQA357	483 mm	Pair
03130437	SQA358	510 mm	Pair
03130438	SQA359	535 mm	Pair

60˚ REPLACEMENT LASER CUT BLADES
Part number
SAP	DEK	Size	Unit
03165892	129924	170 mm	Each
03165893	129925	200 mm	Each
03165894	133584	250 mm	Each
03165895	133585	300 mm	Each
03165896	129926	350 mm	Each
03165897	133586	400 mm	Each
03165898	129927	440 mm	Each
03165899	133587	483 mm	Each
03165900	133588	510 mm	Each
03165901	129928	535 mm	Each

45˚ REPLACEMENT LASER CUT BLADES
Part number
SAP	DEK	Size	Unit
03166893-01	133601	170 mm	Each
03168405-01	133602	200 mm	Each
03168555-01	133603	250 mm	Each
03168791-01	133604	300 mm	Each
03169303-01	133605	350 mm	Each
03169341-01	133606	400 mm	Each
03169513-01	133607	440 mm	Each
03170087-01	133608	483 mm	Each
03170351-01	133609	510 mm	Each
03172721-01	133610	535 mm	Each

LEAD FREE REPLACEMENT BLADES
Part number
SAP	DEK	Size	Unit
03130219	431001	200 mm	Each
03128589	431002	250 mm	Each
03130220	431003	300 mm	Each
03128577	431004	350 mm	Each
03130221	431005	400 mm	Each
03130340	431006	440 mm	Each

LEAD FREE METAL CLAMPED SQUEEGEES 60° ~ 6 MM OVERHANG
Part number
SAP	DEK	Size	Unit
03130452	SQAG311	200 mm	Pair
03130453	SQAG312	250 mm	Pair
03130454	SQAG313	300 mm	Pair
03128618	SQAG314	350 mm	Pair
03130455	SQAG315	400 mm	Pair
03130456	SQAG316	440 mm	Pair

DEK SELF ADJUSTING PASTE DEFLECTORS (SAPD)
Part number
SAP	DEK	Description	Unit
03162490-01	602428*1	Self adjusting paste deflectors MPU (2x left hand, 2x right hand)	Set of 4
03162487-01	226587	Paste deflector kit	Set of 2
03162489-01	225974	Left hand paste deflector	Each
03162488-01	225973	Right hand paste deflector	Each

POLYURETHANE BONDED SQUEEGEES GREEN 70-75 SHORE HARDNESS ~ 45°
Part number
SAP	DEK	Size	Unit
03136509	SQA248	100 mm	Pair
03130492	SQA254	150 mm	Pair
03130403	SQA161	170 mm	Pair
03130488	SQA167	200 mm	Pair
03130406	SQA174	250 mm	Pair
03130398	SQA152	300 mm	Pair
03130408	SQA185	350 mm	Pair
03142810	SQA190	400 mm	Pair
03138030	SQA201	440 mm	Pair
03130490	SQA210	483 mm	Pair
03142818	SQA219	510 mm	Pair
03141708	SQA231	535 mm	Pair

POLYURETHANE BONDED SQUEEGEES BLUE 75-80 SHORE HARDNESS ~ 45°
Part number
SAP	DEK	Size	Unit
03142348	SQA247	100 mm	Pair
03131654	SQA253	150 mm	Pair
03131650	SQA160	170 mm	Pair
03130404	SQA166	200 mm	Pair
03131651	SQA173	250 mm	Pair
03142286	SQA151	300 mm	Pair
03130407	SQA184	350 mm	Pair
03131652	SQA189	400 mm	Pair
03142811	SQA200	440 mm	Pair
03142815	SQA209	483 mm	Pair
03142817	SQA218	510 mm	Pair
03141707	SQA230	535 mm	Pair

POLYURETHANE BONDED SQUEEGEES PINK 94-97 SHORE HARDNESS ~ 45°
Part number
SAP	DEK	Size	Unit
03142884	SQA246	100 mm	Pair
03142226	SQA252	150 mm	Pair
03130486	SQA159	170 mm	Pair
03142232	SQA140	200 mm	Pair
03139258	SQA172	250 mm	Pair
03130485	SQA150	300 mm	Pair
03142820	SQA229	350 mm	Pair
03130484	SQA147	400 mm	Pair
03142875	SQA130	440 mm	Pair
03142814	SQA208	483 mm	Pair
03142880	SQA217	510 mm	Pair
03142820	SQA229	535 mm	Pair

POLYURETHANE BONDED SQUEEGEES YELLOW 120 SHORE HARDNESS ~ 45°
Part number
SAP	DEK	Size	Unit
03142821	SQA245	100 mm	Pair
03136182	SQA251	150 mm	Pair
03130401	SQA158	170 mm	Pair
03142806	SQA141	200 mm	Pair
03142877	SQA171	250 mm	Pair
03142808	SQA178	300 mm	Pair
03142228	SQA142	350 mm	Pair
03142809	SQA188	400 mm	Pair
03142257	SQA199	440 mm	Pair
03142813	SQA207	483 mm	Pair
03142816	SQA216	510 mm	Pair
03142883	SQA228	535 mm	Pair

DEK PUMPPRINT™ SQUEEGEES FOR GLUE PRINTING
Part number
SAP	DEK	Size	Unit
03142822	SQA455	170 mm	Pair
03130505	SQA456	200 mm	Pair
03130439	SQA457	250 mm	Pair
03130440	SQA458	300 mm	Pair
03130441	SQA459	350 mm	Pair
03130442	SQA460	400 mm	Pair
03130506	SQA461	440 mm	Pair
03130507	SQA462	483 mm	Pair
03142202	SQA463	510 mm	Pair
03142823	SQA464	535 mm	Pair

SPECIAL SQUEEGEES
Part number
SAP	DEK	Size	Description	Application	Unit
3141152	208226	180 mm	Diamond squeegee blade 9.5 mm Polyurethane, RED	Screen printing	Each
3141953	213699	180 mm	Diamond squeegee blade 9.5 mm Polyurethane, Blue	Screen printing	Each
3141511	SQA102	200 mm	Diamond squeegee with Polyurethane Blade, Pink	Screen printing	Each
3141603	SQA104	350 mm	Diamond squeegee with Polyurethane Blade, Pink	Screen printing	Each
3141062	FBA062	450 mm	Flood bar squeegee incl. stainless steel blade	Screen printing	Each
3139877	FBA047	170 mm	Flood bar squeegee incl. stainless steel blade	Screen printing	Each

3130445	SQA544	250 mm	Half round squeegee assembly	Semiconductor like wafer coating	Each
3130446	SQA545	330 mm	Half round squeegee assembly	Semiconductor like wafer coating	Each

3141668	163424	450 mm	Replacement blade for flood squeegee assembly	Screen printing	Each
3161783	107805	535 mm	Replacement blade for flood squeegee assembly	Screen printing	Each
